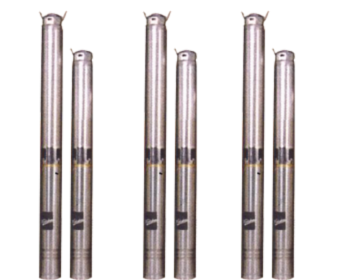

KU4 WINNER 100mm (4") Submersible

Salient Features

  • Light weight and compact.
  • Non overloading power characteristics.
  • Flatter and higher efficiency curve, energy saving.
  • "F" class of insulation.
  • Lesser no. of stages of for given performance
  • Antifriction bearings for axial / radial loads.
  • Can be installed with HDPE / UPVC / GI pipes.
  • Potable and hygienic grade oil filled motor.
  • Casing, shaft, hardware of stainless steel.
  • Impeller and diffuser of engineering plastic.
Head range Upto 238 meters
Discharge range Upto 320 Ipm
Power rating 0.37-2.2kW(0.5-3.0HP) (1 ph)
0.37-3.0kW (0.5-4.0 HP) (3ph)
Voltage range 150-240v (1 ph)
280-430v (3 ph)

Water supply for

  • Multistoried buildings, Apartments
  • Sprinkler and drip irrigation
  • Pressure booster system
  • Farm house
  • Nurseries

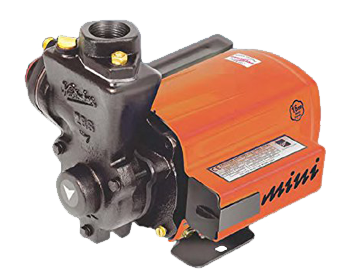

MINI

Salient Features

  • Self priming
  • Forged brass parts for less water & tear.
  • Motor fitted with thermal overload protector (TOP) for safety.
  • Motor can withstand wide voltage fluctuation.
  • Shielded ball bearings for life long lubrication.
Head range Upto 50 meters
Discharge range Upto 54 Ipm
Power rating 0.18-0.75 kW (0.25-1.0 HP)
Voltage range 180-240V

Water supply for

  • Domestic use in high rise apartments
  • Hotels
  • Hospitals
  • Garages
  • Washing equipments
  • Gardening

AQUAMAST

Salient Features

  • Self priming, instant supply.
  • Aluminium extruded motor body.
  • Motor fitted with thermal overload protector (TOP) for safety.
  • Motor can withstand wide voltage fluctuation.
  • Shielded ball bearings for life long lubrication.
Head range Upto 50 meters
Discharge range Upto 54 Ipm
Power rating 0.18-0.75 kW (0.25-1.0 HP)
Voltage range 180-240V

Water supply for

  • Domestic use in high rise apartments
  • Hotels
  • Hospitals
  • Garages
  • Washing equipments
  • Gardening

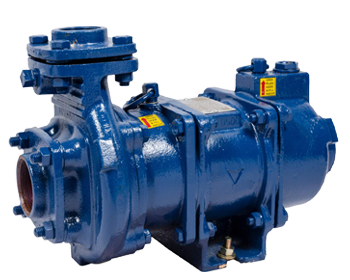

KOSM (Openwell Submersible) (Single phase)

Salient Features

  • Non-overloading power characteristic for safety of motor.
  • Foundation & installation net required.
  • No need of priming or foot valve.
  • Replaceable wearing parts.
Head range Upto 28 meters
Discharge range Upto 11 Ipm
Power rating 0.37-1.5kW (0.5-2.0 HP)
Voltage range 160-260 V

Water supply for

  • Open well
  • Sump
  • Underground Tank\
  • Gardening and small farm irrigation
  • Apartments, buildings
  • Hotels

KDS+/++ (Single phase)

Salient Features

  • TEFC construction.
  • 'B' class of insulation.
  • Shielded ball bearings for long life lubrication.
  • All rotating parts are dynamically balanced for more bearing life.
  • Designed for automatic air release during priming.
  • Non overloading power characteristic for safety of motor
Head range Upto 28 meters
Discharge range Upto 15 Ipm
Power rating 0.37-1.5kW (0.5-2.0 HP)
Voltage range 180-240 V

Water supply for

  • Gardening and small farm irrigation
  • Hotels

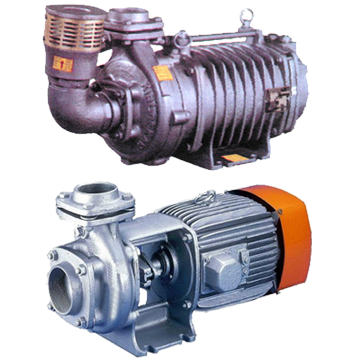

KOS (Openwell submersible) (Three Phase)

Salient Features

  • Dynamically balanced rotating parts.
  • Flatter efficiency curve for efficient operation.
  • Non-overloading power characteristic for safety of motor.
  • Replaceable wearing parts.
  • No need of priming or foot valve
  • Water shower arrangement for surface application.
Head range Upto 64 meters
Discharge range Upto 31 Ipm
Power rating 2.2-11.0 kW (3-15 HP)
Voltage range 200-440 V

Used for

  • Water supply for Irrigation.
  • Lifting water from canal, river.
  • Water supply for apartments, hotels, buildings.

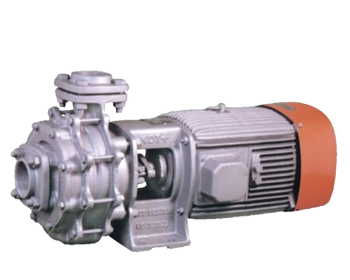

KDT+ (Three Phase)

Two stage High Speed monobloc pump

Salient Features

  • Dynamically balanced rotating parts.
  • Flatter efficiency curve for efficient operation.
  • Non-overloading power characteristic for safety of motor.
  • Low NPSHR, better suction capacity
  • Replaceable wearing parts.
  • Designed for automatic air release during priming.
  • Deep stuffing box design for better sealing
Head range Upto 102 meters
Discharge range Upto 19 Ipm
Power rating 0.75-15 kW (1-20 HP)
Voltage range 300-440 V

Used for

  • Water supply for Irrigation.
  • Lifting water from canal, river.
  • Water supply for apartments, hotels, buildings.

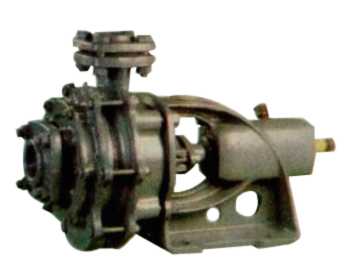

KHDT+ (Three Phase)

Salient Features

  • Dynamically balanced rotating parts.
  • Flatter efficiency curve for efficient operation.
  • Non-overloading power characteristic for safety of motor.
  • Low NPSHR, better suction capacity
  • Replaceable wearing parts.
  • Designed for automatic air release during priming.
  • Deep stuffing box design for better sealing
Head range Upto 104 meters
Discharge range Upto 19 Ipm
Power rating 3.7-15 kW (5-20 HP)

Used for

  • Water supply for Irrigation.
  • Lifting water from canal, river.
  • Water supply for apartments, hotels, buildings.

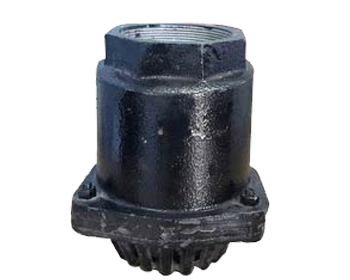

FOOT VALVE

KIRLOSKAR AGRICULTURE PRODUCTS

Salient Features

  • Screwed and flange type construction.
  • Designed to give unrestricted flow to minimise the friction of losses
  • Flap is designed for better sealing.
Size 50-150 mm

Used for

  • Retaining water in Suction Pipe

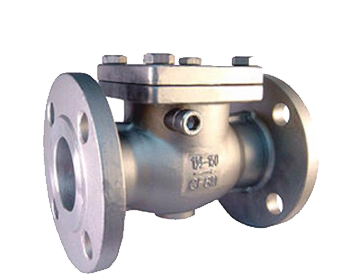

REFLUX VALVE

KIRLOSKAR AGRICULTURE PRODUCTS

Salient Features

  • Body is designed for minimum pressure drop
  • Cover is provided with air release cock
  • Door / hinge is designed for leak tight performance
  • Bronze seat ring machined accurately
Size 50-125 mm

Used in

  • Pipe line for reducing water hammer and to prevent back flow.

DV

Two stage High Speed monobloc pump

Salient Features

  • Replaceable wearing parts.
  • Impeller of high quality bronze material
  • Deep stuffing box for better sealing.
Head range Upto 750mm of Hg
Air Flow Rate Upto 162m / hr
Power rating 3.7-7.5kW (5-10 HP)

Used for

  • Priming of large pumps
  • Evacuation of air from pipe lines, chambers
  • removing water from pulp layer

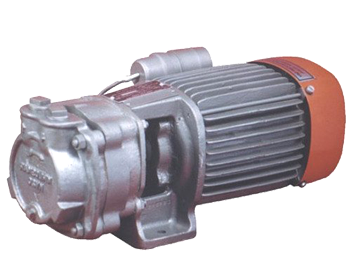

KV

Salient Features

  • Replaceable wearing parts.
  • Impeller of high quality bronze material
  • Motor withstands wide voltage fluctuation.
Head range Upto 650mm of Hg
Discharge range Upto 55m / hr
Power rating 0.75-2.2kW (1-3 HP)
Voltage range 180-240V (1 Ph) / 300-440V (3 Ph)

Used for

  • Priming of large pumps
  • Evacuation of air from pipe lines, chambers
  • removing water from pulp layer

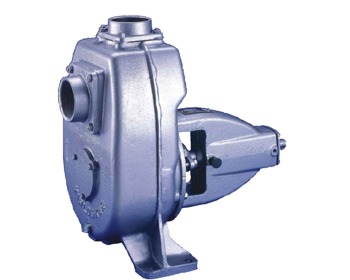

SP

Salient Features

  • Self priming. No need of foot valve.
  • Flatter efficiency curve, non-overloading characteristic.
  • Non clogging impeller to handle suspended solids.
  • Portable when fitted on trolley / trailer
  • Replaceable wearing parts for long life.
Head range Upto 34 meters
Discharge range Upto 77 lps
Power rating 0.75 - 18.7 kW (1-25 HP) Motor coupled
Voltage range 4.0 - 19.4 kW (6-26 HP) Engine coupled

Used for

  • Dewatering foundations, trenches and pits.
  • Sewage pumping
  • Cooling water for marine engines
  • pumping petroleum products

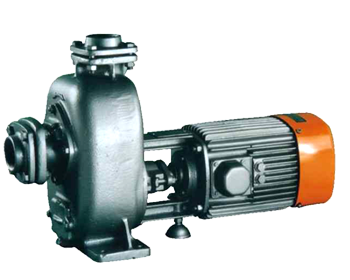

SPM

Salient Features

  • Self priming. No need of foot valve.
  • Motor withstands wide voltage fluctuations.
  • Flatter efficiency curve, non-overloading characteristic.
  • Non clogging impeller to handle suspended solids.
  • Replaceable wearing parts for long life.
Head range Upto 24 meters
Discharge range Upto 17 lps
Power rating 0.75-3.7kW (1-5 HP)
Voltage range 180-240V (1 Ph) / 300-440V (3 Ph)

Used for

  • Dewatering foundations, trenches and pits.
  • Pumping of sewage, chemicals, effluents etc.
  • Cooling water for marine engines.

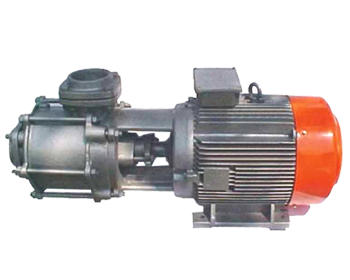

SRF-3095

Salient Features

  • Replaceable wearing parts for long life.
  • Motor is with IP-55 protection.
  • "F" class insulation motor.
Head range Upto 92 meters
Discharge range Upto 22 lps
Power rating 22kW (30 HP)
Voltage range 300-400 V

Water supply for

  • Multi storied buildings, hotels.
  • conventional irrigation / sprinklers.
  • Higher pressure in industries.

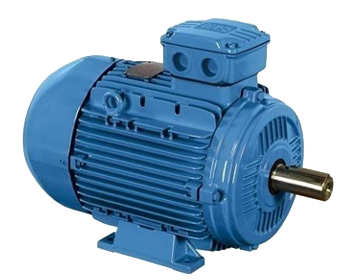

Motor (Three Phase)

Salient Features

  • Excellent starting and pull out torque.
  • TEFC construction, 'B' class of insulation.
  • Horizontal foot mounted motor body.
  • Suitable for operation in either direction.
  • Heavy duty anti-friction, deep grooved ball bearings ensure smooth and longer operation.
  • Terminal board made of non hygroscopic electric grade bakelite.
  • High pressure die cast rotor of high conductivity aluminum
Power rating 0.37-1.5kW (0.5-2 HP)
Synchronous Speed 1500, 3000 rpm
Voltage range 220+/-10%

Water supply for

  • Domestic flour mills
  • Wet grinders
  • Coupled pumps
  • Air handling equipments
  • Air compressors
  • Machine tools
